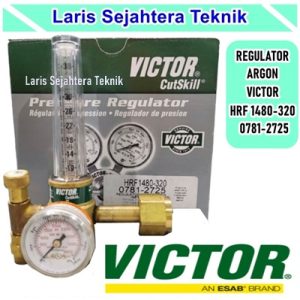

Jual Victor Regulator ARGON RF 1480-320 Harga Murah

Jual Victor Regulator ARGON RF 1480-320 Harga Murah. Jika Anda Berminat Silahkan Hubungi Laris Sejahtera Tlp.021-2268.3317.- Hp. 0819.3236.9677. Harga Murah!





Item Details

• Victor® HSR 2570 Single Stage Medium Duty Argon, Argon/CO2, Helium Calibrations Regulator and Flow meter Combination offers 5 – 50 SCFH of delivery and is ideal for MIG or TIG applications. Regulator with maximum inlet pressure of 3000 psig features a forged brass body with housing cap and has 2″ high pressure gauges with fabric reinforced neoprene diaphragm. Regulator comes with 580 CGA-inlet connection having bronze sintered filter and 5/8″-18 RH(F) outlet connection for giving long lasting service. Regulator has an external reseating relief valve and a stem type seat mechanism with 3 gas calibrations. Regulator measuring 7″ X 4 1/4″ X 6 1/4″ has preset low surge outlet pressure of 25 psig.

Features

• Forged brass body and housing cap
• Fabric reinforced neoprene diaphragm
• Stem type seat mechanism
• External self reseating relief valve (not designed to protect downstream equipment)
• Sintered inlet filter
• 2″ (50.8 mm) high pressure gauge
• Compact in size
• Accurate regulator for gas flow
• MIG/TIG applications

Applications

• Industrial and General Fabrication
• Light Fabrication
• Repair and Maintenance
• Structural Steel Fabrication

Product Attributes

Regulator Type

» Single Stage Regulator
» Flowmeter Regulator

Gas Service

» Argon
» Ar
» Argon/CO2 Mix
» Helium
» He

Delivery Rate

» 5 – 50 scfh

Inlet Connection

» CGA-580

Workload

» Medium Duty

Outlet Connection

» 5/8″ – 18 (RH Female)”

Gauge Diameter

» 2″
