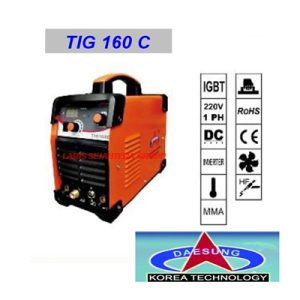

Jual Mesin Las Daesung TIG 160 C Harga Murah. Jika Anda Berminat Silahkan Hubungi Laris Sejahtera Tlp.021-2268.3317.-Hp.0819.3236.9677. Harga Murah!
Spesifikasi
| Product | TIG 160 C |
| Input power voltage (V) | 220 |
| Frequency (Hz) | 50/60 |
| Rated input capacitance (kVA) | 3,594520548 |
| Rated input current (A) | 16,33872976 |
| TIG rated output voltage (V) | 16,4 |
| TIG output current range (A) | 10-160 |
| MMA rated output voltage (V) | 26,4 |
| MMA output current range (A) | 10-160 |
| Arc force current range (A) | – |
| Pre-flow time (s) | – |
| Post-flow time (s) | 0-7 |
| Pulse frequency (Hz) | – |
| Peak time / Pulse Width (%) | – |
| Base Amp (A) | – |
| Up-slope current adjustment time (s) | – |
| Down-slope current adjustment time (s) | – |
| Clean width (%) | – |
| AC Balance | – |
| Remote control | No |
| Arc starting | HF |
| Duty cycle 100% (A) | 160 |
| Duty cycle 60% (A) | 124 |
| Wattage (W) | 600-2600 |
| No-load voltage (V) | 53 |
| No-load loss (W) | 40 |
| Efficiency (%) | 85 |
| Power factor (cosØ) | 0,73 |
| Insulation class | F |
| Protection class | IP21S |
| Electrode (mm) | 2.0-4.0 |
| Weight (kg) | 8,35 |
| Size (L x W x H) (mm) | 455 x 265 x 344 |
Features
- IGBT
- Display Digital
- Multi Fungsi: Bisa pilih mode ARC/MMA atau TIG/GTAW
- Fungsi Post-gas
- Over Current Protection
Accessories
- Tig Torch WP-26-12B Single
- Electrode Holder 2.5M
- Ground Clamp 2.5M
- Gas Hose 3M
Garansi 1 Tahun 3 Bulan Untuk Sparepart
